Mobile readers

TECHNICAL DESCRIPTION AND COMPONENTS

A set of mobile readers is a collection of devices for fluorescent marking verification in warehouses, shops, production shops and other places.

All variants of manufactured mobile readers consist of an optical code scanner and a compact computer. The optical code scanners are available in two versions: "Lumiscan 01" and "Lumiscan 02". А smartphone, tablet computer or industrial smartphone can be used as a compact computer.

The optical code scanner "Lumiscan 01" is a device which registers the luminescent marking image in one spectral range in the visible part of the spectrum. In this case, the luminescence is excited by a set of LEDs emitting in the UV region of the spectrum. In addition, the scanner is capable of registering standard (non-luminescent) one-dimensional and two-dimensional codes illuminated with white light. The scanner is equipped with a laser diode-based aiming device.

The optical code scanner "Lumiscan 02" is an optical module which registers the luminescent marking image in one, two or three spectral ranges in the visible part of the spectrum. This possibility is provided by switching the light filters.

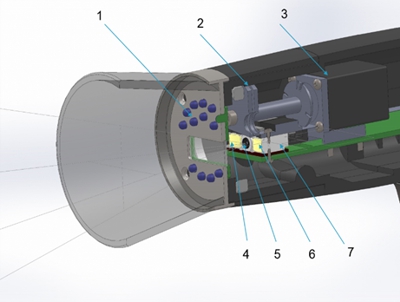

Design of the "Lumiscan 02" scanner for registration of images in several spectral ranges

1 – set of LEDs emitting at one, two or three wavelengths 2 – light filters unit for three filters 3 – stepper motor 4 – white LED 5 – video camera 6 – laser aiming unit 7 – image registration unit with a decoder

Registration of luminescent marking can be carried out at two wavelengths (for example, 645 nm and 583 nm). In this case, the luminescence is excited by a set of LEDs emitting in the UV and visible spectral regions at wavelengths of 370 nm, 405 nm, 430 nm and 470 nm.

If necessary, the LEDs emitting at other wavelengths and other light filters can be used. In addition, the scanner is capable of registering standard (non-luminescent) one-dimensional and two-dimensional codes illuminated with white light. The scanner is equipped with a laser diode-based aiming device.

When ordering a mobile reader, any combination of optical code scanners and compact computers can be chosen.

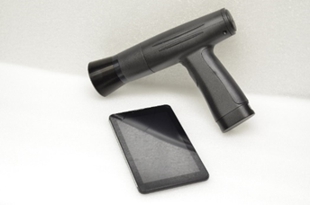

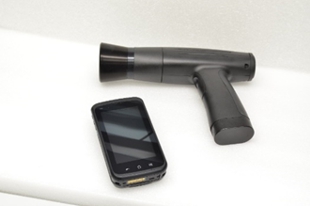

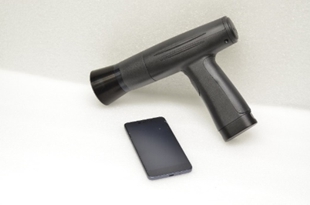

Mobile reader with the "Lumiscan 01" scanner, which carries out registration in one spectral range, and a smartphone		Mobile reader with the "Lumiscan 01" scanner, which carries out registration in one spectral range, and a tablet computer		Mobile reader with the "Lumiscan 02" scanner, which carries out registration in several spectral ranges, and an industrial smartphone "Copernicus C-One"

A device with the function of reading RFID tags (for example, such as an industrial smartphone "Copernicus C-One") can be used as a compact computer, which significantly increases the versatility of the mobile reader kit.
